Professional two-disc fertiliser spreader
with fully automatic EMC metering system
AXIS M 30.2 EMC (+W) offers precise, powerful spreading technology for demanding farmers. With its unique performance potential and innovative detail solutions, it sets new standards in elegant operating comfort, high spreading precision and economic efficiency.
The speed-dependent, convenient QUANTRON-A control unit and the ISOBUS variant are equipped as standard depending on the model variant.
Model variants AXIS M 30.2 EMC (+W)
|AXIS M 30.2 EMC V8||QUANTRON-A operating terminal with VariSpread V8|
|AXIS M 30.2 EMC+W||QUANTRON-A operating terminal with VariSpread V8 with remaining quantity display W|
|AXIS M 30.2 EMC VS pro||QUANTRON-A operating terminal and electrical drop point adjustment with VariSpread pro|
|AXIS M 30.2 EMC+W VS pro||QUANTRON-A operating terminal and electrical drop point adjustment with VariSpread pro with remaining quantity display W|
|AXIS M 30.2 EMC ISOBUS||VariSpread pro with electrical drop point adjustment for connection to ISOBUS universal terminals|
|AXIS M 30.2 EMC+W ISOBUS||VariSpread pro with electrical drop point adjustment for connection to ISOBUS universal terminals; with remaining quantity display W|

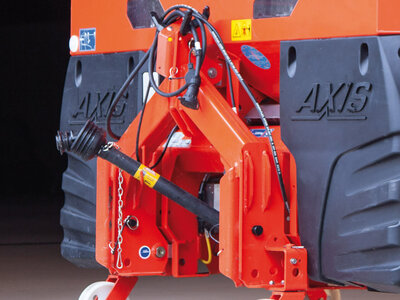

M-Drive: maintenance-free gearbox technology with overload protection
The innovative M-Drive for the throwing discs and the slow-running, fertilizer-friendly agitators is maintenance-free for years. All shafts and angular gears run in an oil or grease bath and are protected from fertilizer dust, dirt, moisture and mechanical damage by a robust frame construction..
Unique in fertilizer technology, AXIS features overload protection systems that protect the entire gear unit, including the fertilizer-protecting agitators, from overload caused by jams, operator error or hard-shifting PTOs.
M-Drive performance data.
- Transmission input: PTO speed of 540 rpm
- Turntable speed: 900 rpm
- Agitator speed: 17 rpm pulsating and extremely gentle on fertilizer
AXIS M 50.2 EMC+W
- Gearbox input: PTO speed of 750 rpm
- Throwing disc speed: 900 rpm
- Stirrer speed: 17 rpm pulsating and extremely gentle on fertilizer
Intelligent agitator technology.
The innovative agitator drive for the slow-running, fertilizer-sparing agitators is.
maintenance-free for years. Overload protection systems protect the entire agitator unit from overstress due to blockages.
- extremely fertilizer-sponed: vibration agitator rotates at only 17 rpm
CDA spreading technology | remote controlled
Precision meets ease of use
As a further option, AXIS fertiliser spreaders can be equipped with an electrical output point adjustment. Setting up a two-disc fertiliser spreader has never been as easy. All setting parameters can be easily taken from the clearly-arranged spreading chart and conveniently entered into the logically structured input mask in the control panel. Even easier is the transmission of the complete set values from the spreading chart smartphone app via the WiFi module on the spreader, thus eliminating the need to input the data manually. Simply select "Fertiliser" and the machine is all set to go (optional accessory).
The high-quality, dust-proof and splash-proof electric SpeedServo actuators with state-of-the-art sensors automatically adjust the setting of the dispensing gates and the output points of the coaxial CDA spreading technology on the left and right side. At the same time, the specified spreader disc speed is automatically reached with the hydraulically-driven AXIS-H spreader.
Thus, AXIS is precisely tailored to the exact fertiliser type and quality, the spreading properties, the desired application rate and the spreading width. Manual setting steps are no longer required with AXIS H, and with AXIS M only the Telimat thrower shield has to be set.
The intelligent online automatic dosing system with e-bike technology
AXIS EMC® measures and controls the current application rate fully automatically on the left and right dosing gate separately. State-of-the-art magnetostriction torque sensors measure the drive torques of the two throwing discs without contact and with high precision, thereby permanently controlling the exact metering gate position for each side separately. EMC® uses magnetostrictive e-bike technology, proven millions of times over, from renowned system partner Schaeffler FAG.
High precision, elegant ease of use.
For the driver, this means simply entering the application rate and working width and start spreading. The spread rate adjusts in seconds, depending on the instantaneous fertilizer trickle characteristics and travel speed.
EMC® meters the left and right sides separately, unlike spreaders controlled by load cells. This allows for more metering precision and side-by-side distribution..
EMC® detects and compensates for quality-related fertilizer flow rate fluctuations much faster than conventional weigh cell spreaders.
EMC® meters accurately and reliably even under extreme vibration conditions.
EMC® meters with high precision even on slopes.
EMC® measures the applied quantities in kg with high precision like a scale for your documentation.
Intelligent EMC® metering gate control automatically detects one-sided blockages and clogs.
EMC® precisely measures and controls left and right differential application rates when spreading with VariSpread in wedge areas.
EMC® precisely measures and controls the different spread rates on the right and left when spreading with partial area accuracy from application maps or with N-sensors.
SpeedServos | AXIS fertiliser spreaders are becoming even more efficient
The big SpeedServo advantage:
The adjustment speeds of the SpeedServos are 2.5 times higher than the previous spindle motor models. This opens up a world of superior response speeds and new performance dimensions for the AXIS M EMC ISOBUS spreaders and AXIS H EMC spreaders for fully-automatic fertiliser dispensing with EMC, headland dodging with OptPoint, area-specific spreading with application maps, and with sectional width spreading with section control.
Despite consuming considerably less energy, SpeedServos achieve up to 3 times higher actuating forces than comparable spindle motors. Its superior energy efficiency makes it ideal to use in ISOBUS machines, since the ISOBUS standard limits electrical power consumption.
In addition, SpeedServos are much more efficient at protecting against dust and dirt, as there is no longer any delicate and telescopic lifting rod. The effective, long-term sealing against moisture and dust as well as the simple, robust SpeedServo construction give extra long service life to the valuable electronic components.
Synergien nutzen - Effizienz steigern
Innovative RAUCH ISOBUS technology for the ISOBUS fertiliser spreader allows you to use your existing and familiar ISOBUS control panels from a wide range of suppliers and machines.
QUANTRON-A | AXIS
The spreader thinks with you!
QUANTRON-A regulates the opening position of the dispensing gates and thus the flow rate depending on the driving speed and the specified application rate.
When the driving speed varies, the preselected application rate always stays the same. QUANTRON-A impresses users with its large, clear display and intuitive menu navigation. All functions can be operated remotely, comfortably and safely with just one hand.
The AXIS M 20.2/30.2 with QUANTRON-A and manual CDA output point adjustment has 8-way section control as standard. With this alternative to the VariSpread pro, the remote-controlled adjustment of the dispensing gate positions allows for 4 sections per side.
AXIS H 30.2/50.2 EMC (+W) and AXIS M 30.2/50.2 EMC (+W) with VariSpread pro feature electric feed point adjustment, adjusting the working width and application rate in a gliding process during spreading travel..
Thanks to RAUCH SpeedServo actuators, the application rate and working width are continuously and steplessly adjusted to field wedges, sloping headland areas or non-opening tramlines in one-meter increments, even at high working speeds.
Also new is GapSpreading, which allows simultaneous shutdown from the outside and inside.
W | Remaining quantity scales
Always an eye on the remaining quantity
The scale integrated in the spreader gives a reliable indication of the remaining fertiliser in the container.
Overloading can thus be planned at the ideal time.
The "W" remaining quantity scale is part of the standard equipment of:
- AXIS M 30.2 EMC®+W
- AXIS M 30.2 EMC®+W dynamik ISOBUS
- AXIS M 50.2 EMC®+W
For AXIS M 30.2 EMC®+W, the optional residual quantity sensor indicates the minimum filling level.
Perforation corrosion guarantee
AXIS fertilizer spreaders from RAUCH are characterized by a high-quality durable ProTect double powder coating.
The optimal protection against mechanical stress, UV light, salts and acids guarantees a long service life of the construction.
RAUCH provides a 6-year warranty against perforation corrosion on all AXIS fertilizer spreaders.
Activate the perforation corrosion warranty of your new AXIS fertilizer spreader by scanning the QR code on the warranty sticker (on the machine),
register* in the online portal the serial number of your new AXIS machine, your address information and then click on "Submit claim" - very easy!
Benefit from the proverbial RAUCH quality for many years.
Hopper cover and AP drive
The prefect protection against moisture and dirt from the tyres.
All AXIS hopper covers open over the entire filling area thanks to the high-quality "convertible-like folding" feature.
So filling can carry on, trouble-free, as usual. An opening mechanism with a long lever arm makes it easy to open and close the hopper cover.
Even with a hopper cover, the fill level can still be checked quickly and easily from the tractor cab via the window areas in the cover.
On request, the hopper cover can be operated remotely from the cab via the electric AP-Drive (only with AXIS of the .2 series with Quantron-A or ISOBUS).
Parking rollers ASR 25
Enjoy more flexibility when it comes to spreader attachments and dismantling with the large ASR 25 parking rollers. A quick-release coupling system allows the rollers to be removed at any time or mounted in transport position.
Access ladder AS-XL-25
The collapsible ladder enables easy access to the container. Only for AXIS 30.2 / 50.2 in conjunction with wide XL attachments.
AXIS 50.2 generally comes with a ladder (left) as standard.
Bei AXIS 50.2 ist eine Aufstiegsleiter (links) im Serienumfang enthalten.
AXIS lighting with warning signs
High-quality LED headlights, integrated in the warning signs, ensure more safety on the road.
High-quality LED headlights, integrated in the warning signs, provide a good view of the tractor.
GPS control with CCI 800
In order to use the QUANTRON-A to automatically switch part-width sections and headlands via GPS or to scatter application maps, the QUANTRON-A is connected to the CCI.800 terminal via a serial interface.
In this case, the CCI.800 is not used as an ISOBUS terminal, but as a GPS terminal that, in combination with a GPS receiver, switches part-width sections via SectionControl or processes application maps via the TaskController.
GPS speed sensor
In order to be able to regulate spreading according to the driving speed, the QUANTRON-A and QUANTRON-K2 scatter computers, and the ISOBUS display all require a speed signal. This usually comes via the 7-pin signal socket or the ISOBUS from the tractor unit. If the tractor itself is not equipped with this signal, either a wheel sensor must be retrofitted or you can use this GPS speed sensor.
A GPS signal in combination with an acceleration sensor generates a high-precision speed signal. This is especially recommended if the spreader is used in combination with several tractors or is also shared by different companies.
Another great advantage of this is that the slip of the tractor tyres in wet conditions or slopes does not matter and does not adversely affect the spreading result.
Level sensors | AXIS
For each AXIS with electronics one level sensor can be optionally fitted to the filling sieve per container side. These sensors give off a warning in the display should the level on the respective side get too low. This accessory is particularly interesting for machines without remaining quantity scale or for spreaders with section control, which work in a very one-sided manner, and it also helps to avoid flaws.
Limited border spreading GSE AXIS/AXENT
The GSE 30 and GSE 60 enable sharp-edged border spreading on the left and right side directly on the field boundary with half-side spreading. The distance to the border can be varied between 0 to 3 m. GSE 30 is the thrower shield for AXIS M 20.2 / 30.2. GSE 60 is suitable for use with AXIS M 50.2 and AXENT.
Optionally, GSE 30/60 can be remotely controlled hydraulically
- using the FHD 30-60 remote control via a double acting tractor control valve.
Limited border spreading Telimat AXIS
TELIMAT enables precise, hydraulically remote-controlled edge and border spreading right from the first tracks. The double-adjustable spreading compartments redirect the fertiliser to fulfil the requirements of the European environmental standard.
Without the need for stopping and dismounting, the Telimat T25 swings up and down on the AXIS 20 and 30 via a single-acting tractor control valve. AXIS M 50.2 W ISOBUS is equipped with a TELIMAT T50 remote control as standard.
The optional AXIS Telimat sensor shows in the display of the QUANTRON-A or the ISOBUS terminal whether the Telimat thrower shield is in the ready position. It happens again and again that not only smartphone-happy farmers forget to raise the Telimat again after limited border spreading, thereby causing errors in the spreading results. Just one look at the display and you will be reminded of the Telimat's position.
Practical test set
More safety when spreading
RAUCH PPS 5 Practical test set permits cross-distribution to be checked and corrected quickly and easily in the field. This provides even more reliability and accuracy during spreading, particularly with fertilisers of lower quality, problematic discharge properties or unknown origin.
In combination with the clear and comprehensible AXIS-CDA tuning logic, corrections are amazingly easy and secure.
PPS 5 components:
- 10 collecting trays
- 5 measuring cylinders
- 1 roller tape measure
- clear, logical operating instructions.
Rear view camera
The RAUCH rear-view camera for RAUCH ISOBUS fertiliser spreaders also provides a good view to the rear, even on tall machines. This increases work safety when manoeuvring and also when spreading. The robust camera body is attached to the rear of the spreader. A protective plate prevents radiation and reduces the dirtying of the optics. The direction of the camera can be adjusted depending on the application.
The rear-view camera is compatible with the RAUCH ISOBUS universal terminals. Moreover, the camera can be connected to all terminals that have an AEF-compliant video input.
The rear-view camera is available for use with AXIS-ISOBUS, AXENT and AGT.
Dirt deflector with quick release fastener
A practical idea makes it all the way to series production. With the assembling tool located on the spreader, the three attachment points of the mud flaps can be released quickly and easily with a quarter turn. So cleaning the machine quickly and carefully is a snap.
SpreadLight | AXIS
Modern GPS-controlled OptiPoint headland management systems and VariSpread section controls make precise fertiliser spreading possible - even at night. So far, however, it has been very difficult for the driver to visually check the individual spreader functions while spreading in the dark. In addition, obstacles in the spreading area pose a risk at night.
Thanks to the SpreadLight work lights, RAUCH has solved these problems. Modern, powerful LED work lights directly above the two spreader discs of the fertiliser spreader illuminate the spread fans on the left and right side.
The driver has the spread fan in full view thanks to SpreadLight. Possible incorrect settings or clogging at the dispensing gates are recognised immediately. Moreover, the operator can respond more quickly to difficult-to-detect obstacles or danger spots in the outer spreading area in the dark, especially when it comes to wide spreading widths.</p<p>Unlike the tractor's work lights, SpreadLight is specifically aimed at the spreading fan. The fertiliser granules thereby reflect the intensive LED light.
As simple as it is convenient, SpreadLight is remotely controlled by the ISOBUS terminal via a touchscreen. The operator can choose whether the headlamps are permanently lit or automatically switch off and on in the headland in order to avoid blinding oncoming traffic on the road. SpreadLight can be retrofitted as an option for all mechanical and hydraulically driven RAUCH AXIS.2 ISOBUS fertiliser spreaders.
6 year warranty against rusting
AXIS fertiliser spreaders are characterised by their high-quality, durable ProTect double powder coating. Perfect protection against mechanical stress, UV light, salts and acids guarantees the construction will last a long time. RAUCH now offers a 6 years warranty against rusting on all AXIS fertiliser spreaders manufactured after September 2017.
Simply activate the anti-rust warranty for your new AXIS spreader with the barcode on the warranty sticker. Benefit from the legendary RAUCH quality for many years to come.
Everything revolves around precision.
Ejection discs Working width Beschreibung S1 Working width: 12-18 m S2 Working width: 12-18m S4 Working width: 18-28 m S6 Working width: 24-36 m S8 Working width: 30-42 m
* Coated spreader vanes with VXR plus
The flexible attachment system enables optimum adjustment of the hopper volume.
Technical data and equipment
|Model variant||AXIS M 30.2 EMC V8||AXIS M 30.2 EMC+W||AXIS M 30.2 EMC VS pro||AXIS M 30.2 EMC+W VS pro||AXIS M 30.2 EMC ISOBUS||AXIS M 30.2 EMC+W ISOBUS|
|Working width [ m ]||12 – 42||12 – 42||12 – 42||12 – 42||12 – 42||12 – 42|
|Hopper volume [ l ]||1,400||1,400||1,400||1,400||1,400||1,400|
|Max. capacity [ kg ]||3,200||3,200||3,200||3,200||3,200||3,200|
|Container size [ cm ]||240 x 130||240 x 130||240 x 130||240 x 130||240 x 130||240 x 130|
|Filling height [ cm ]||107||107||107||107||107||107|
|Filling width [ cm ]||230||230||230||230||230||230|
|Empty weight [ kg ]||335||390||335||390||355||390|
|Tractor attachment||Three point category II/III||Three point category II/III||Three point category II/III||Three point category II/III||Three point category II/III||Three point category II/III|
|Drive||M drive: Universal drive shaft with ratchet safety clutch 540 rpm||M drive: Universal drive shaft with ratchet safety clutch 540 rpm||M drive: Universal drive shaft with ratchet safety clutch 540 rpm||M drive: Universal drive shaft with ratchet safety clutch 540 rpm||M drive: Universal drive shaft with ratchet safety clutch 540 rpm||M drive: Universal drive shaft with ratchet safety clutch 540 rpm|
|Slide actuation/quantity regulation||EMC mass flow control||EMC mass flow control||EMC mass flow control||EMC mass flow control||EMC mass flow control||EMC mass flow control|
|Servomotors||Slide actuation elec. HighSpeed servos||Slide actuation elec. HighSpeed servos||Slide actuation elec. HighSpeed servos||Slide actuation elec. HighSpeed servos||Slide actuation elec. HighSpeed servos||Slide actuation elec. HighSpeed servos|
|W remaining quantity scales||No||Yes||No||Yes||No||Yes|
|Variable Rate Control||Yes||No||Yes||Yes||Yes||Yes|
|Electronics||QUANTRON-A spreading system||QUANTRON-A spreading system||QUANTRON-A spreading system||QUANTRON-A spreading system||ISOBUS electronics with job computer||ISOBUS electronics with job computer|
|Section control||VariSpread V8 partial width controller||VariSpread V8 partial width controller||VariSpread pro partial width controller||VariSpread pro partial width controller||VariSpread pro partial width controller||VariSpread pro partial width controller|
|Limited border spreading||Limited border spreading with TELIMAT, Limited border spreading with GSE||Limited border spreading with TELIMAT, Limited border spreading with GSE||Limited border spreading with TELIMAT, Limited border spreading with GSE||Limited border spreading with TELIMAT, Limited border spreading with GSE||Limited border spreading with TELIMAT, Limited border spreading with GSE||Limited border spreading with TELIMAT, Limited border spreading with GSE|
